ZooKeeper / QIX CPU board +5 voltages?

badgamer

Member
Joined
Jan 10, 2008
Messages
356
Reaction score
3
Location
Tasmania, Australia

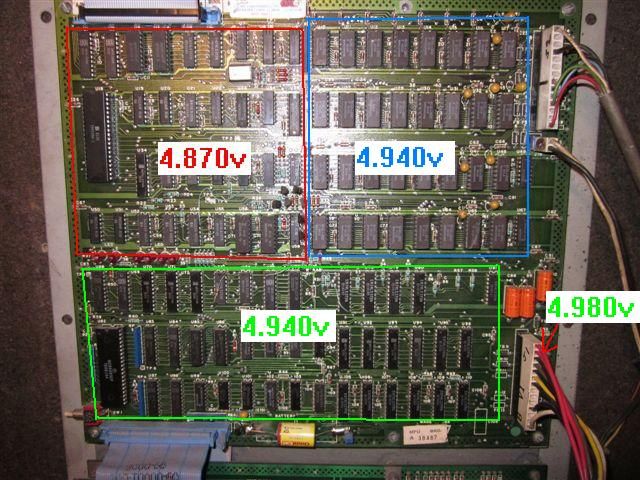

One of my ZK CPU boards has different voltages in different areas...see pic below.

As the pic shows, I have 4.980v at the +5 header pins(it used to be a drizzle over +5 last I checked about 6 months ago)...the other 3 boards also get 4.980v across the chips....so close enough to +5???

The game still plays OK, but I have noticed some subtle but strange goings on during gameplay since the voltage drops in the areas shown in the pic??

I have an ATX power supply, so can't pump up the juice a bit.

My question is, what might have caused the voltage drops?

EDIT...the blue RAM area is actually 4.920v...I put the wrong voltage in the pic






Thanks for any insight!


john

.

Either your power-supply is weakening or aging components on your ZK board are drawing more current ... or both.

I would swap out the power supply with something you can adjust and ensure that the lowest voltage you measure ON THE PCB is above +5V. Then if you still have issues, it's time to troubleshoot.

MajorHavoc said:
Either your power-supply is weakening

Thanks for the heads up on this, I wasn't sure if those ATX PS do actually "weaken" or just fail, period?

I wanted to avoid it if possible, but I will install a switcher.

For my own educational purposes, can someone tell me if it's possible(technically) that data is being slightly corrupted by the different voltages, or doesn't it work like that??



john

.

Apon further examination (I have swapped 2 other working ZK boardsets) in and out of the cab.

All 3 boardsets exhibit the same voltage readings...that is the +5v are reading low, AND the -5v are reading high at -5.150v at the 4116 chips.

So I can safely assume that most likely the PS is on it's way out??????


Thanks for any confirmation before I rip this PS out!


john

.
