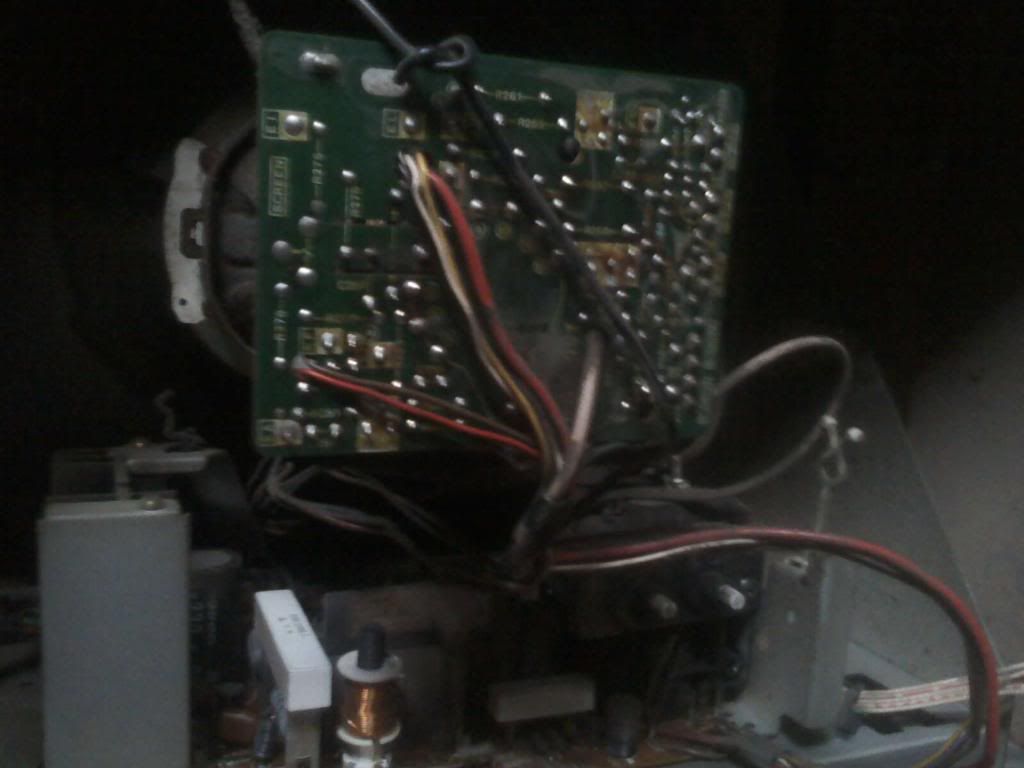

Im trying to identify this chassis. I know its a bad picture. The guy sent it to me on his phone.


Hilarity

That video cable and tall heatsinks (20EZ's are shorter) behind the width coil have me thinking it may be what's on my bench right now...

It appears to be a 13/14" chassis with a full square PCB, unlike the Atari 14" with the cutout. Cap map is close to a 20EZ and the 13" AZZ, but not a perfect match on either. Also close to the EZZ variants, but again, not quite right.

Of course, one would assume this Centipede is a 19" setup, so it's probably not, but here's some pics of what's on my bench now for shits and giggles.


Attachments

  • FILE1113.jpg
    97.1 KB · Views: 12
  • FILE1116.jpg
    94.6 KB · Views: 8
  • FILE1117.jpg
    95.6 KB · Views: 8
  • FILE1118.jpg
    98.9 KB · Views: 8
  • FILE1120.jpg
    94.4 KB · Views: 9
Sanyo 20-EZY. Almost the same as the Z, but non-inverted video, no flyback cage, and no sound amp. Ive got several of them in Dig Dugs.

Yup....the easiest way to tell the difference, the filter cap. EZV's use a 470uf at 160 volts.......the EZY uses a 330uf at 200 volts. You can just barely make out the 330 on the filter cap in the original posters picture.

ballytablewiz, yours looks like a YZL 19".....very early Sanyo monitor.

Sanyo 20-YZL 19"


1uf50V C166/C302/C453/C454
1uf160V C408/C467/C610
4.7uf25V C162/C411 Both BP Caps
10uf50V C301/C303/C406
10uf160V C407/C471
22uf50V C464
47uf10V C458
100uf16V C459
100uf160V C410/C472
220uf16V C161/C202
220uf25V C469
330uf25V C468
470uf10V C609
470uf160V C606 B+ Filter Cap

Audio Board​
1uf50V C375
4.7uf25V C371 BP Cap
10uf160V C377
220uf25V C378
