U5000- where does this plug go ?

ArcRevival

Well-known member
Joined
Aug 31, 2006
Messages
10,147
Reaction score
1,099
Location
RAPID CITY, South Dakota

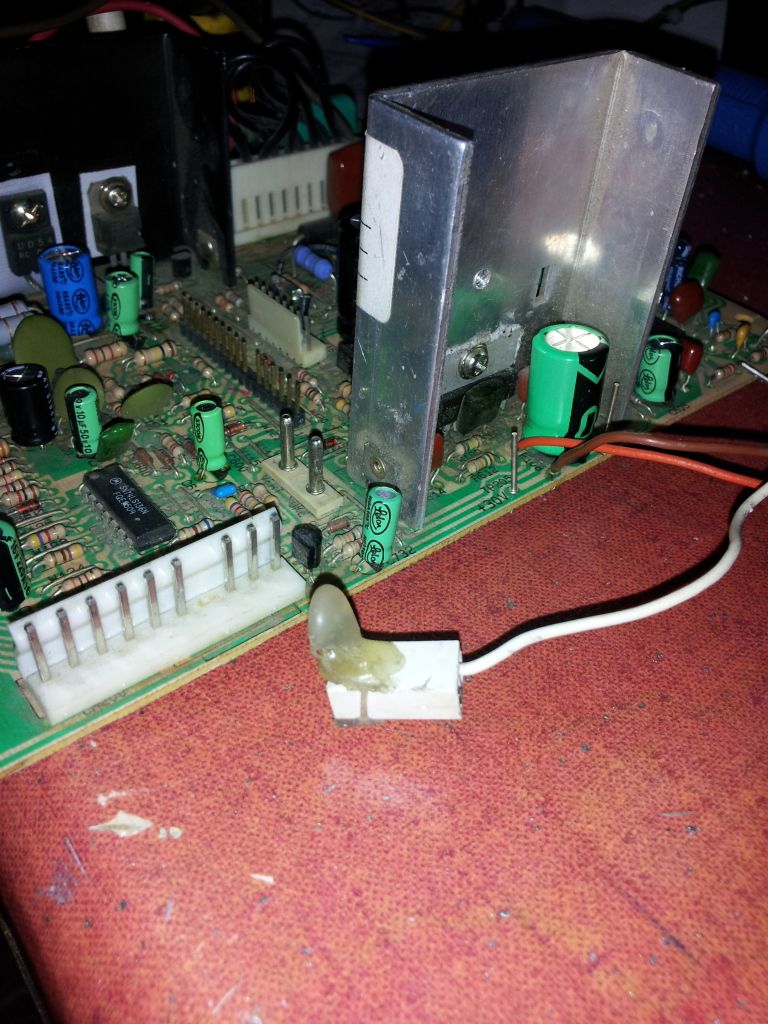

Can't seem to figure out where this white plug goes. It comes off the resistor that looks like it's supposed to be mounted to the heat sink. Anyone ?


That was one of the WG fixes (U5000 Vertical Sweep Upgrade Kit - S05F0000-000F). You connect the white wire side right to TP205 for 15KHz, or disconnected (empty side) for 25KHz.
