trying to wire a 20 ez for my 1st 60 in 1 arcade game

kuglerarcade

New member
Joined
Oct 13, 2007
Messages
780
Reaction score
3
Location
medina, Ohio
trying to wire a 20 ez for my 1st 60 in 1 arcade game

ok this is what i got a donkey kong monitor 20ez and the ribon cable needs to be wired for a new mikes arcade inverter board for the video out since the plugs arnt right.heres some pics to try to explain.what i really need is to know where i guess number 1 would be on the monitor board so i can wire the colored wires to the ribbon cable .so is like the very top of the plug 1 i dont know.thanks bob


Attachments

  • 60 in 1 003.jpg
    60 in 1 003.jpg
    87.7 KB · Views: 16
  • 60 in 1 006.jpg
    60 in 1 006.jpg
    90 KB · Views: 18
  • 60 in 1 002.jpg
    60 in 1 002.jpg
    97.9 KB · Views: 15
Your jamma harness is gonna be wired into the input on the inverter board, then the inverter board will go from inverted out to the chassis.

I will find the wire diagram, one sec.

Pin 1 - green
Pin 2 - red
Pin 3 - blue
Pin 4&5 - ground
Pin 6 - sync

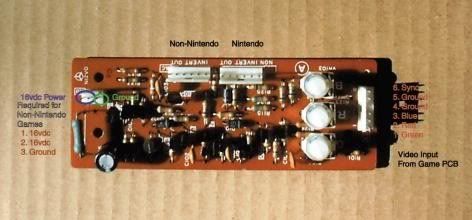

Pic below for wire connector reference.
