Sharp Image SI-629 schematics...

I am resurrecting this old thread because I just got my hands on a free SI-629 monitor and I have not been able to find a manual or schematics for it, so I would appreciate any help with that.

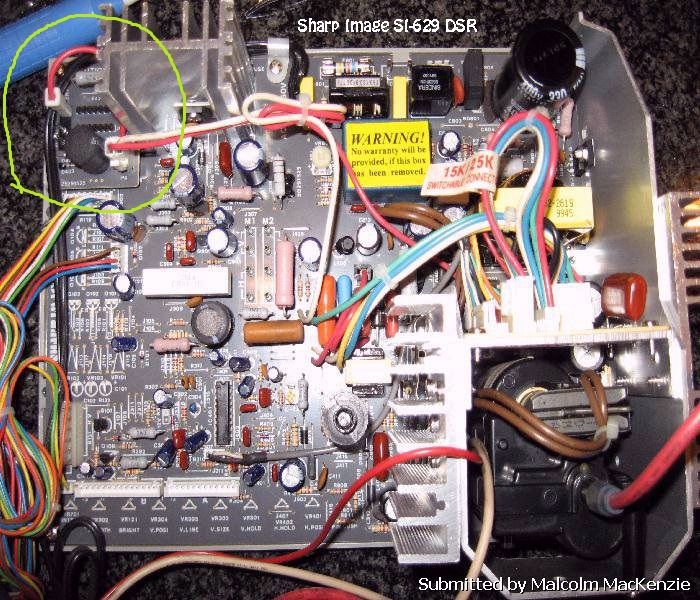

Also, I notice that my chassis is missing a little daughter card shown in the top left of Bob's picture (below) and that section of my chassis is entirely unpopulated. I am not sure of the significance of that either..........
As always gentlemen, thank you in advance.
-Kyros




While your waiting for the schematic?

What kind of issues are you having with it?

Dead?

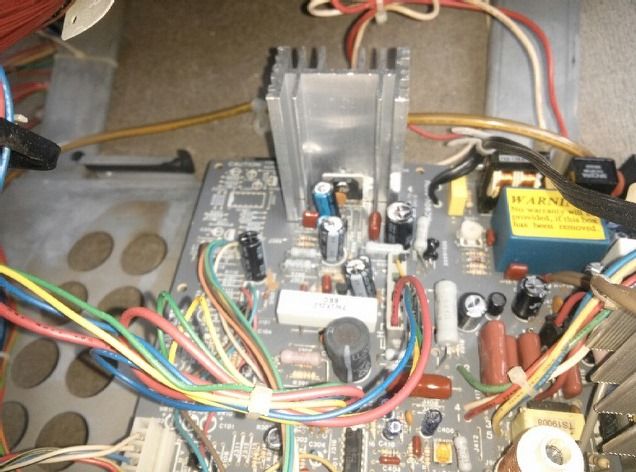

Take a picture of your chassis and and we can point out some good test points.

always good to have at website for reference.

Compare the major parts used in the chassis to other schematics found.


Can't expect a schematic for each model made.

Check for some secondary voltages from the smps.

and any shorts on the H.O.T
Most likey needs the caps replaced, if no shorts.
