Playchoice/punch out owners I need some help

Mindl3ss

Well-known member
Joined
Apr 17, 2010
Messages
4,208
Reaction score
682
Location
Centralia, Washington
I just need a few pics of the inside of the cab from the back.

Exactly how the cage is mounted, and how the power supply is bolted to the cage. Mainly what the screws look like. Is the supply bolted?

Thanks in advance

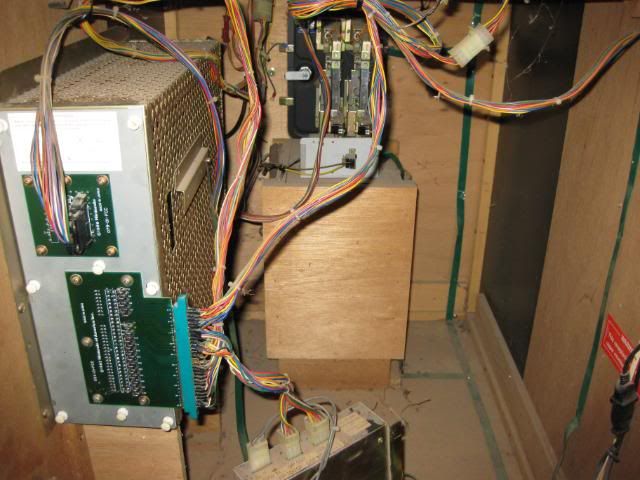

Here's all I've got on my computer right now, can get more tomorrow if you need some. The power supply sits in that ledge on the cage and then two screws hold it in on top.


I just picked this one up yesterday. This is where the power supply is on mine, it's bolted to the side it seems.


Attachments

  • DSC08452.JPG
    56.4 KB · Views: 31
  • DSC08435.JPG
    48.4 KB · Views: 34
Thanks guys, much appreciated

Is the cage resting on the wood piece on the side of the cabinet? And are there washers around the screws?

I didn't realize the holes on the cage for the PSU were threaded, lol.

Now, I need a shot of the back door, from the inside, top and bottom parts.

I know I'm not going to get it 100%, but I hope I can get it as close to factory as possible

Last edited:
I've got mine opened up and in the garage right now. Can get pics of whatever you need.

Cool, I would appreciate it!

just what I listed before, really. I need a shot of the top and bottom of the back door. And I guess where the door meets at the top of the cabinet


Attachments

  • DSC08485.JPG
    53.5 KB · Views: 13
  • DSC08515.JPG
    34.2 KB · Views: 14
  • DSC08499.JPG
    30.9 KB · Views: 11
  • DSC08498.JPG
    31.5 KB · Views: 11
excellent.

From what I can see, looks like mine's missing the pice the cord on the bottom goes through, and my back door doesen't have anything to hold it down there, it just sits freely.

Is the back key the same key as the coin doors? the Takigen keys?

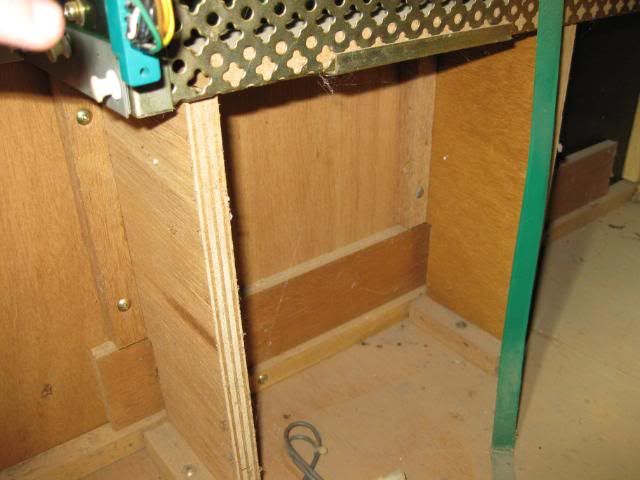

The cage does rest on the wood:

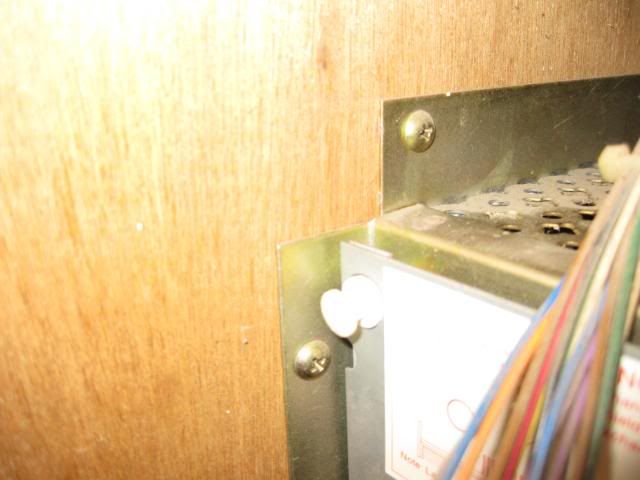

The screws holding the cage on do not have washers:


Top of the door:

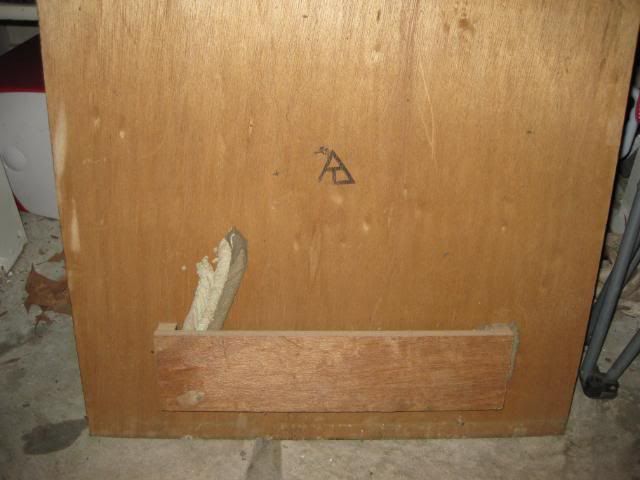

Bottom of the door (don't mind the wasp nests):

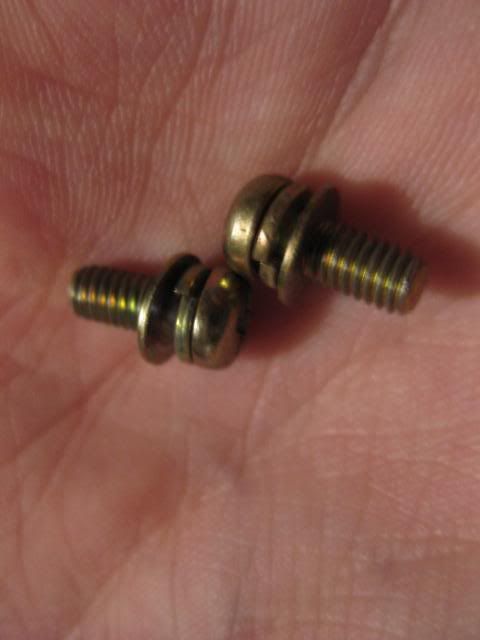

Here are the screws that mount the PS to the cage, they do have washers:


Edit: 8-Bit's PS is a bit different than mine, his looks like it sits sideways. Mine sits flat on the cage in those two slots, it's just not pictured as it's broken.

Last edited:
Pretty sure on mine the power supply is mounted to the side of the cage differently. See if i cant get a picture.

EDIT: Take a look in the Punch-Out manual.

Punch-Out Manual

You will see a couple illustrations.

Last edited:
Oh, no! I just noticed I'm missing a piece!

I circled it on ghostnuke's picture. Is this piece the same exact size as the one that is closer to the front? I have that piece. If it's the same, I guess I can just make mine by mirroring it.

attachment.php


thanks again
