Paperboy 6502 Processor error...

descrentl

New member
Joined
Nov 20, 2006
Messages
5,774
Reaction score
13
Location
Redford, Michigan

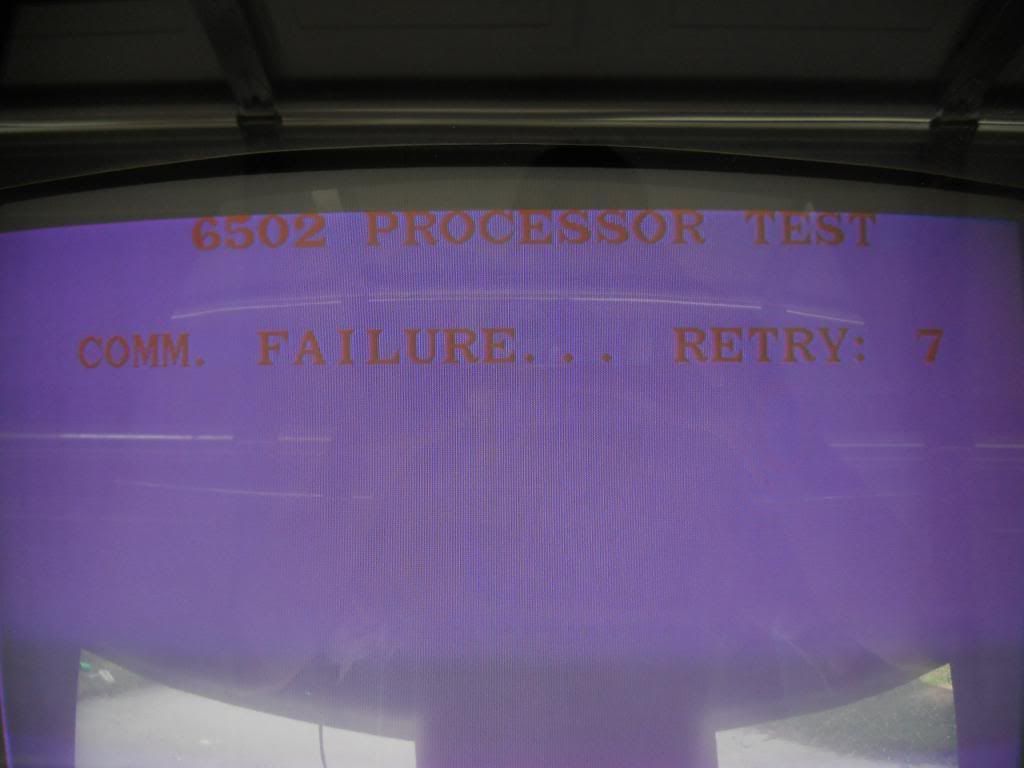

Ok, so Im in the process of trying to get my Paperboy up and running. After some power adjustments and reflowing joints, I get this error. Can anyone shed more light on it? I have swapped it with a known good 6502 and it didnt help. I tested the original in my 720 and it worked fine. Does wacky voltages affect this? Could it be a bad socket? Any help would be great. Thanks


When testing, try and go back one solder point from the connector/joint so you know it's not the connector-board solder joint.

So heres what Ive done so far. Ive reflowed all the pins on the connectors. I metered the edge connector and none of the pins show open. My switcher and ARII are putting out proper voltages. I got my 5v on the test points on the boards. Now I cant get back into test mode. It just shows garbage. Does anyone know where to begin on what chips I should be checking for correct voltages? Any other areas on the board I can test? Any help would be great. Thanks

So heres what Ive done so far. Ive reflowed all the pins on the connectors. I metered the edge connector and none of the pins show open. My switcher and ARII are putting out proper voltages. I got my 5v on the test points on the boards. Now I cant get back into test mode. It just shows garbage. Does anyone know where to begin on what chips I should be checking for correct voltages? Any other areas on the board I can test? Any help would be great. Thanks

It is probably time for a logic probe.
First, check to make shure you are gettin' a clock signal to the chip. If the 6502 does not get a clock/crystal signal it will never start.
Other than that maybee wiggle and push on stuff (rom chips) THEN power back up. Also make try another ribbon cable just 4 fun.
?And maybee check ur dip switches...Happend to me once.

Yeh, when I did get into the test mode, the 6502 was failing. It doesnt have a ribbon cable to connect the 2 boards together. I swapped out a known good 6502 and it didnt help.

It is probably time for a logic probe.
First, check to make shure you are gettin' a clock signal to the chip. If the 6502 does not get a clock/crystal signal it will never start.
Other than that maybee wiggle and push on stuff (rom chips) THEN power back up. Also make try another ribbon cable just 4 fun.
?And maybee check ur dip switches...Happend to me once.

Did you check you crystal?

I dont own a logic probe. If I get my hands on one, where do I check to see if its working correctly?

I haven't woked with a 6502 for some time, since kim-1. I do know, from reading several posts here, that ALL CPU chips needs a signal or what is commonly refered to as a "clock" to even get started. Kind of like a starter on a car. My kim-1 had one. It would be x1/y1 or xtal on the pcb and without a logic probe you may see some small voltage changes. I would just ohm it to check the connections to cpu/6502. The voltage is very small and it is more of a pulse.
When I get a chance to look at schematic I will be able to tell you more.

It is usually a small tin colered can type thing with some kind of numbers on the top end.

Last edited:
On page 6-42 of the atari book there is a good pic of the 6502. The clock signals I am talking about are on the upper right side in that pic.

A fellow KLOVer that lives real close has a logic probe so I will be checking it out soon. I want to play this so dam bad.

So today I swapped all the removable chips from my Paperboy CPU, to my 720 CPU, and it fired up with graphic glitches using the 720 graphics board. I think thats telling me that my CPU board is working, so now Im leaning towards it being a bad graphics board. Theres a ton of chips on the graphics board so I havent done that swap yet. Could a bad graphics board not let the game boot? I still need to get a logic probe and test the crystal.

When you do get your hands on a logic probe check the cpu lines. You can use a multi meter to see the voltage changes in a pinch.

nmi=6

irq=4

rdy=2

res=40

r/w=34
