Need some help identifying pots

Link's broken.

Not broken - read the response - you need to log on to access the info:



You have tried to download content from our server via a web page that has not been authorized. This could mean you either came via a search engine, or from a page that has simply stolen our contents masquerading it as their own, for their own credit.

If you wish to download our contents, feel free to visit our webpage:

http://flipperspill.com

Yeah, I figured that out, thanks.

I'm not too good at reading schematics yet, but I'm trying to learn. Here's a pic of the pots I need to replace:

attachment.php


It appears that the H-Cent pot is VR401 or VR402. The Bright pot is definitely VR302.


Attachments

  • pots.JPG
    15.3 KB · Views: 36
That's a "non-regular" Sanyo. Someone else posted a pic of one recently with all the pots. Contact them for the info...

i have the exact same chassis here.

and i took it apart just for you.;)

i don't know the location # for each pot but i read the label on the front of the monitor as i was looking at the values.

they are all 6mm leg spacing for theses 4 pots.

brightness 103 = 10k
H-Center 204 = 200k
V-Hold 204 = 200k
V-Size 503 = 50k

i have all the pots you need but they are not side facing so you would have to make a remote board.

Peace
Buffett

Thanks for that, Mike. I have the chassis in hand now, too, so I was able to take some better pics.

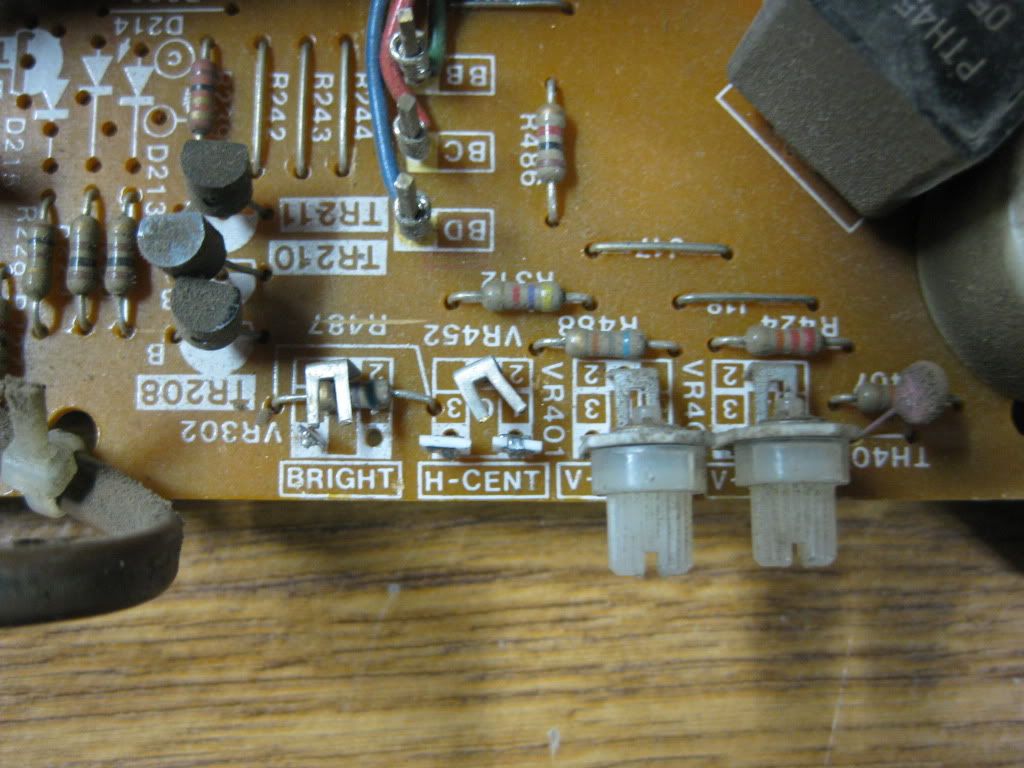

Here's the missing pots:



And the overview shot of the chassis:



Looking at the close-up photo, it appears the pots I need to replace are VR452 and VR302. I'll see if I can find the proper manual for this monitor and identify the specs on these pots.

ok looking at yours and mine.

the values i gave are correct.

brightness 103 = 10k VR302
H-Center 204 = 200k VR452
V-Hold 204 = 200k VR401
V-Size 503 = 50k VR40? i can't see the last #

Peace
Buffett

Actually, looking at the schematics, WTF model chassis is this?

EDIT: Nevermind, Buffett has the numbers for me.

Off to Bob Roberts I go...
