need detailed pics of inside a sw ur cabinet

vader1979

Well-known member

Donor 2021, 2023
Joined
Dec 13, 2011
Messages
2,081
Reaction score
80
Location
bismarck, North Dakota
When I purchased my sw ur it was in pieces. I do not know how everything goes back together.. :/ does anyone have any pics to show how the pcb...power supply and chassis is to be hooked up? Any pics would help. Right now I am waiting for chassis to be returned...but I am able to connect the pcb and power supply up. Please help! Coin door I already have connected...

I have a wells gardner....don't have a manual yet....gonna have to rely on pics for now. Don't need pics of monitor yet....just how pcb and power supply are hooked up.

I'm going to be installing my new ESB kit in mine soon, so I can snap some pics for you if there aren't any on this thread by then.

got manual...but my sw has a wg6100. anyone got pics of theres installed in a sw? any help appreciated. should be getting chassis back tomorrow or fri...wanna get it up and running this weekend. i got the pcb hooked up...just need to know how to correctly connect the chassis to the rest of machine. thanks!

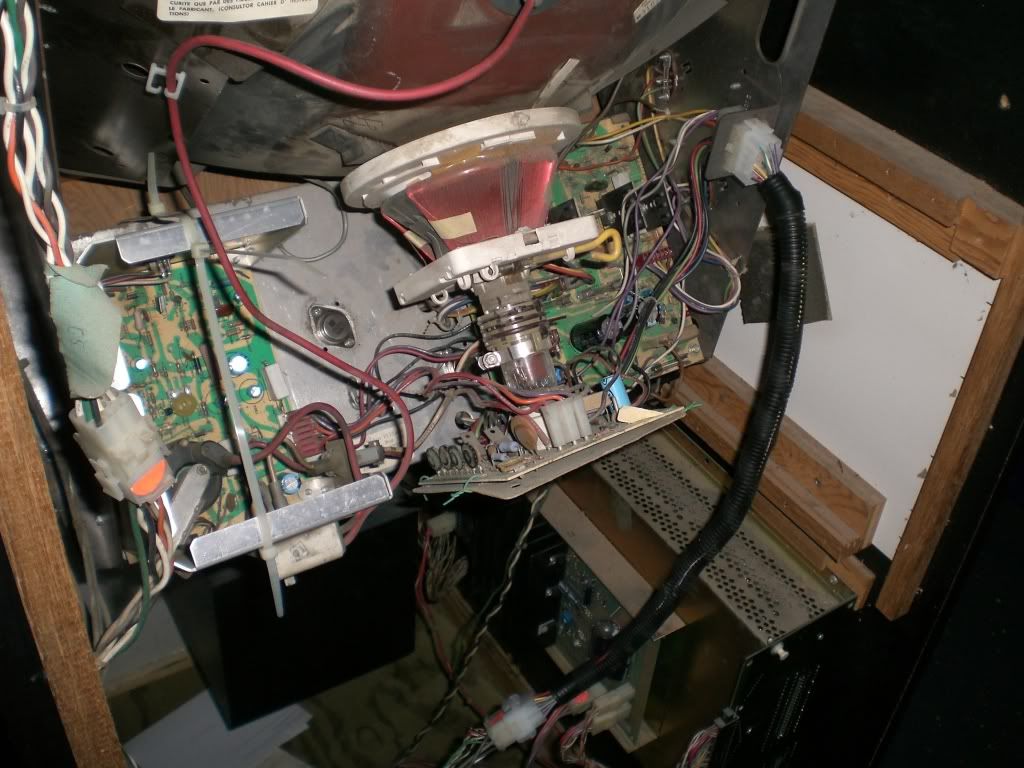

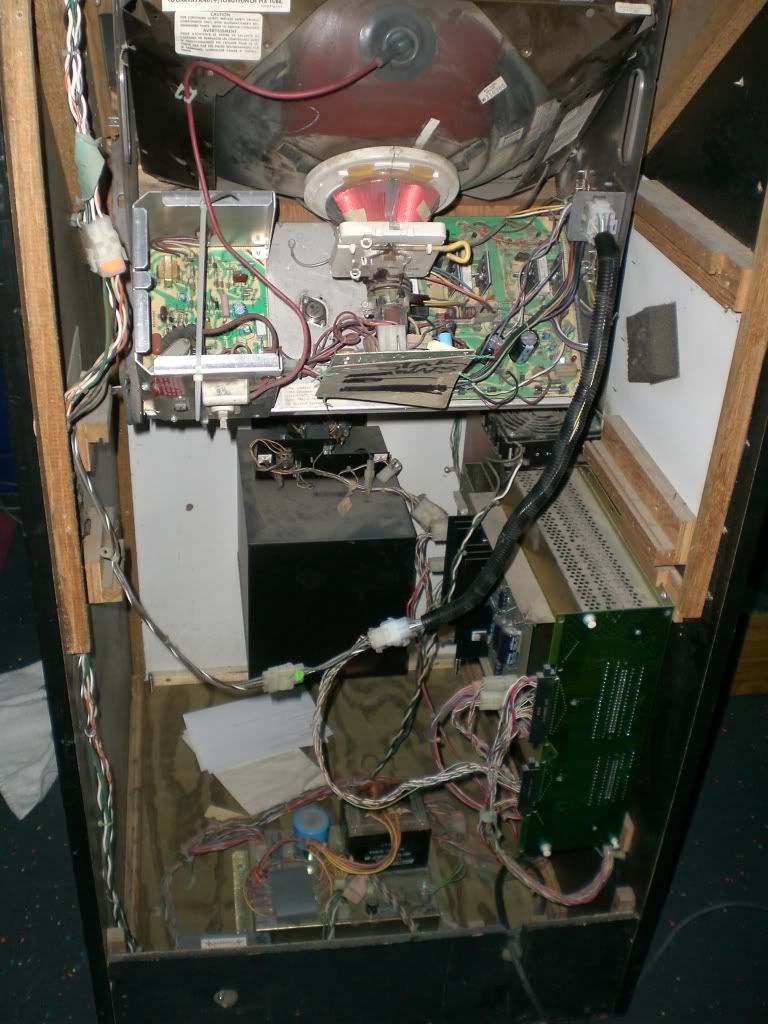

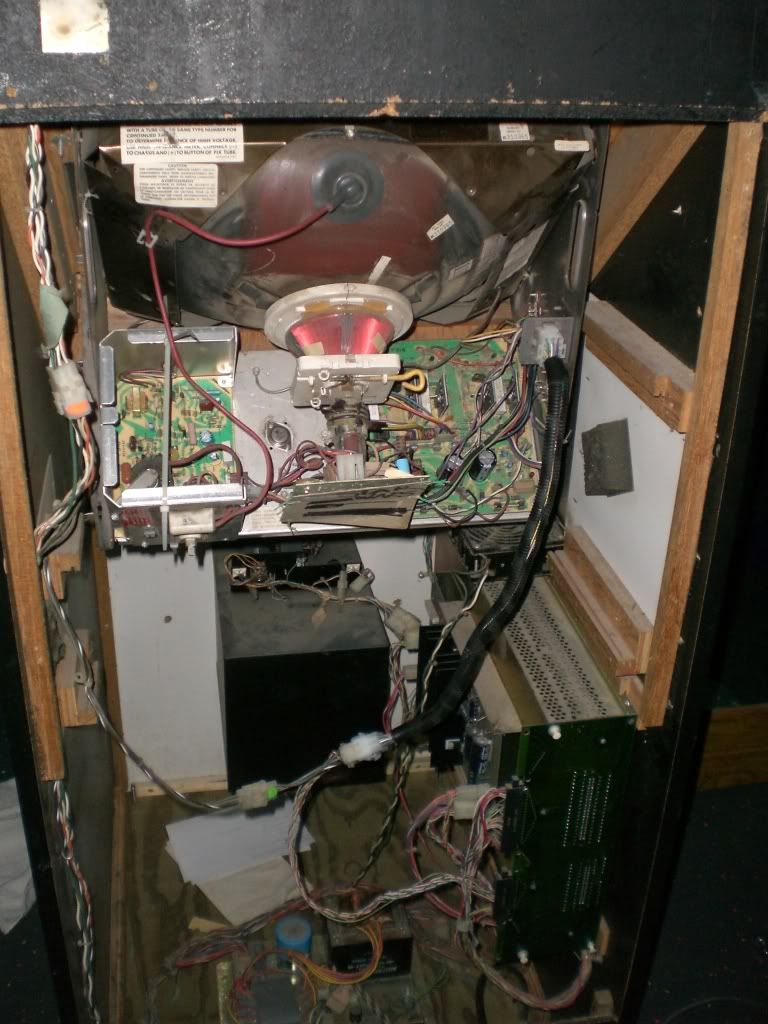

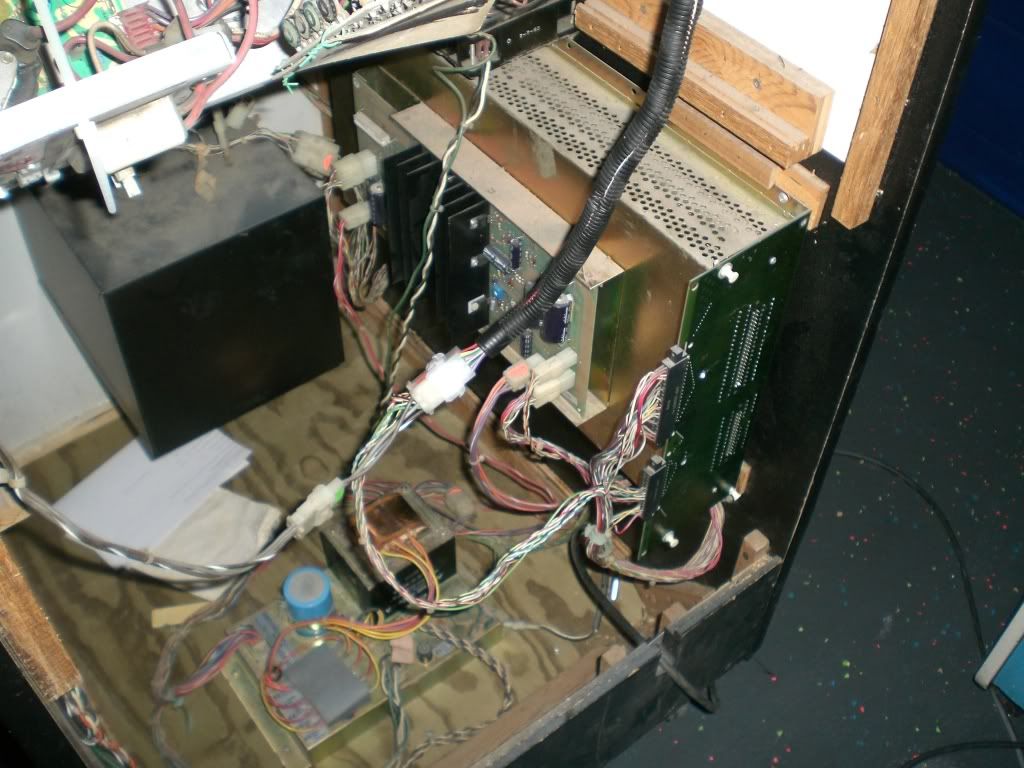

Hooking up your 6100 should be very easy. Here's some pics of the inside of my SW upright. Sorry for the clutter, it's not been restored yet.

FYI, there's a 6100 extension cable installed in these pics...it's the cable that's wrapped in sheathing.










Thank I very much! The pics will be very helpful. Much easier when I can "see" where its supposed to go. Will keep posted on results!

Got chassis back today. Everything else was hooked up..used pics to help....flipped on switch and it works! Thanks again for the pics!!

I was shopping...had add in wanted section. Found one...should be getting wed ir thurs. In meantime I got my original yoke back from my buddy..thumb buttons dint work and it needs restoration...but it will work till I get the new one...then I thunk I will sell my old one on klov..it came with a yoke rebuild kit...I just don't want to mess with it since I am getting one that has been restored.








QUOTE=smalltownguy2;2024806]Are you shopping? I have a spare one.[/QUOTE]
