Ok, so I am a complete idiot - I took apart my Monaco GP to 'restore' and of all things I didn't make note of the orientation of the connectors on the back of the 'cage'. So here I am to ask would it be possible to have someone verify the 3 wire connectors?

Am I correct with having the yellow power wires on the bottom side of the top 2 connectors and on the top of the bottom most connector as shown in the attached picture?

I would hate to power up the unit with them reversed.

Many thanks to anyone that is willing to help.


Attachments

  • IMG_0509 [800x600].jpg
    IMG_0509 [800x600].jpg
    81 KB · Views: 25
Ok, so I am a complete idiot - I took apart my Monaco GP to 'restore' and of all things I didn't make note of the orientation of the connectors on the back of the 'cage'. So here I am to ask would it be possible to have someone verify the 3 wire connectors?

Am I correct with having the yellow power wires on the bottom side of the top 2 connectors and on the top of the bottom most connector as shown in the attached picture?

I would hate to power up the unit with them reversed.

Many thanks to anyone that is willing to help.

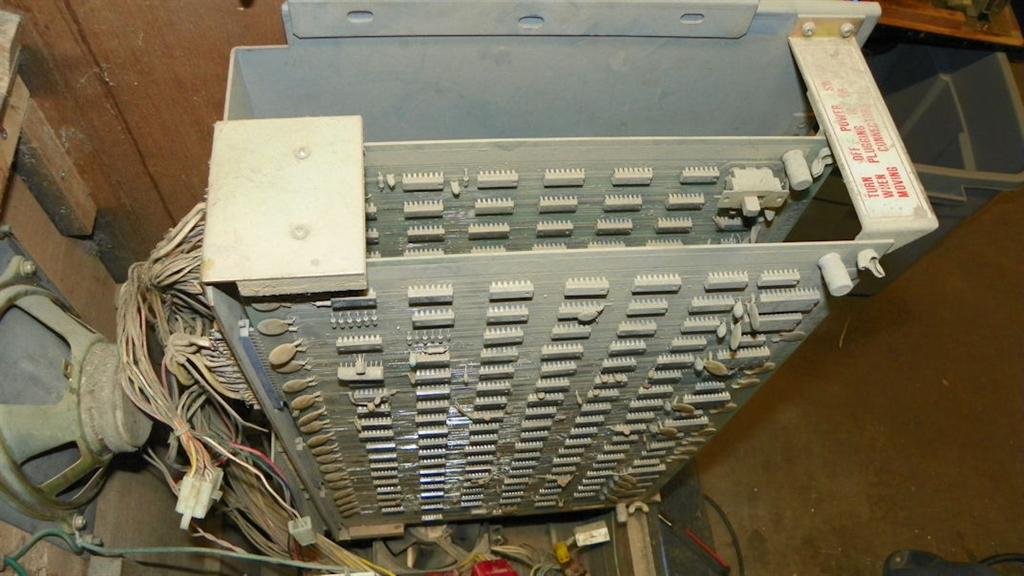

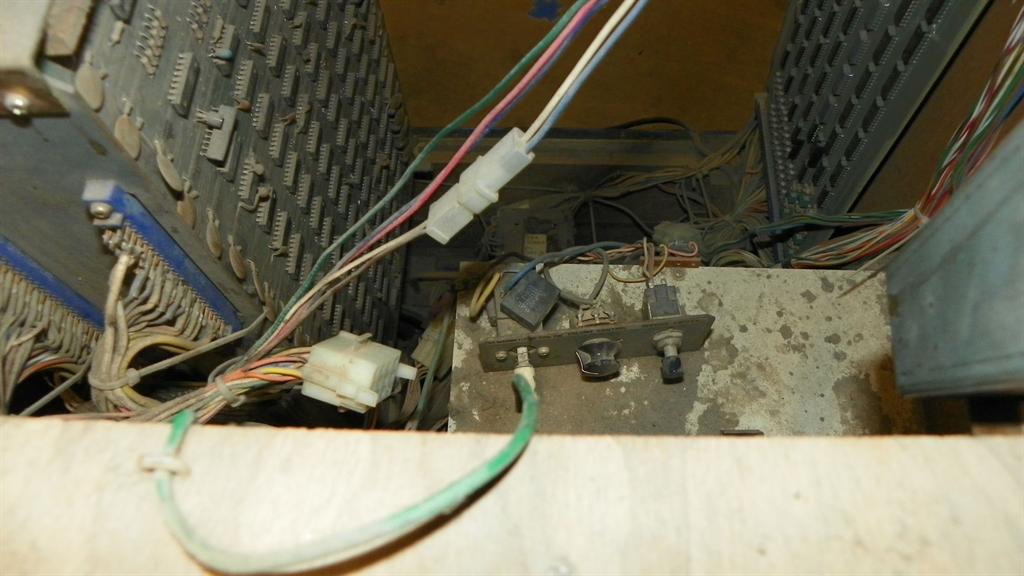

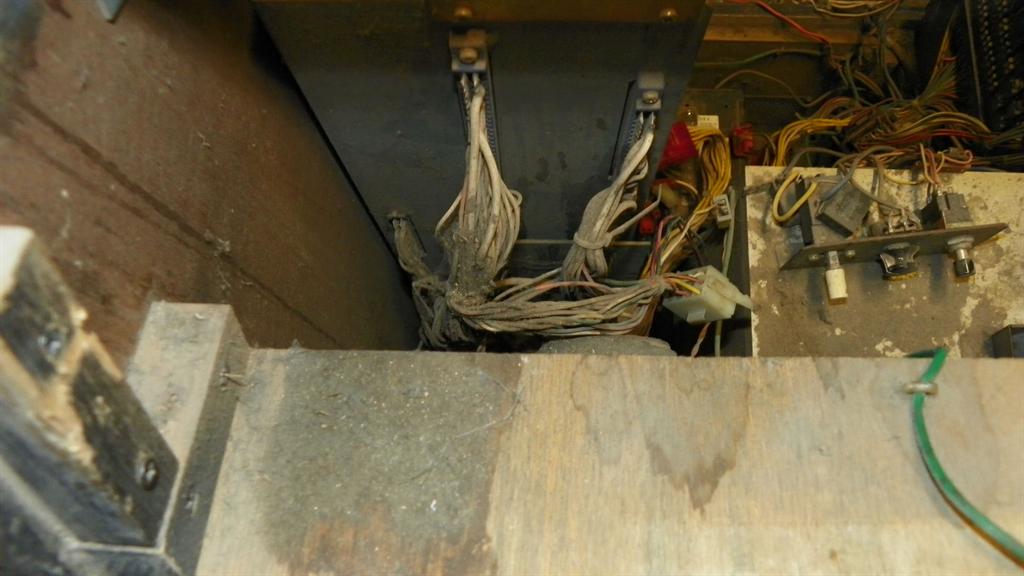

Well, it's a bit hard to tell wire colors in my pictures because the wires are so dirty, but you should be able to make the orientation based on wire locations.

http://www.arcaderestoration.com/Media/Graphics/MonacoGP/monacoedgeconnectors1.jpg

http://www.arcaderestoration.com/Media/Graphics/MonacoGP/monacoedgeconnectors2.jpg

http://www.arcaderestoration.com/Media/Graphics/MonacoGP/monacoedgeconnectors3.jpg

Well, it's a bit hard to tell wire colors in my pictures because the wires are so dirty, but you should be able to make the orientation based on wire locations.


Thank you for those, looks like my upper 2 connectors are correct (white wires on the top end) - but hard to tell about the lower connector (left most 1 in your first picture).

Mine is opened up since I'm working on it. I can take some picture for you or compare your pictures to mine tomorrow hopefully.
