Missile Command Power Brick & Wiring

JoeB1355

Well-known member
Joined
Dec 11, 2010
Messages
1,631
Reaction score
99
Location
Seymour, Tennessee
So I'm trying to put this back togther. I think the terminals get screwed to the brick when its mounted to the bottom -- True?

Pic:
http://www.flickr.com/photos/58441349@N04/5365229458/in/photostream/

if someone has a pic of theirs and how its get mounted.

Alos looking of a close up of the AR board and connectors with wires visible -- my harnes has 3 of the 3 connectors hacked off -- I got new connects and working on getting wiring pieces -- just to make sure I wire it up right!!

I think you're going to struggle to do this using photographs alone. You might manage it, but given the amount of hacked wires you've got in front of you it's not going to be easy.

In an ideal world, you'd have access to some sort of diagram. The diagram would clearly indicate the color of each and every wire, and indicate where it runs from, and where it runs to.......

Grab the schematics.

Seriously. It'll tell you everything you need to know. It'll be much easier than working from photographs, and you won't be hanging about while you request endless variations of different photo shots from various different angles.

Good luck though.

True

I was gonna verify as much as possible with the manual -- I can't remember if it had the wire colors or not though. I can surely ohm it all out. I do have a centipede which I have been looking as for a reference somewhat -- of course its not exactly the same

I think its about 11 wires for the AR stuff -- the monitor / speaker and marque wired I already have figured out.

How about the terminals I have in the pic with the power brick? do they bolt to the bottom?

when I got this is was jamma converted and had been disassembled so the round terminals were not connected to anything -- Are they hacked? they don't look to be -- they look they same connector/terminal as the ground terminals on the interlocks

Mostly after the terminal/brick connection info.

I have a MC cabaret at home. The back is off of it and I can get to it (surprising). If you can hang for about 90 mins, I'll take some pics and post them here for you.

Tom

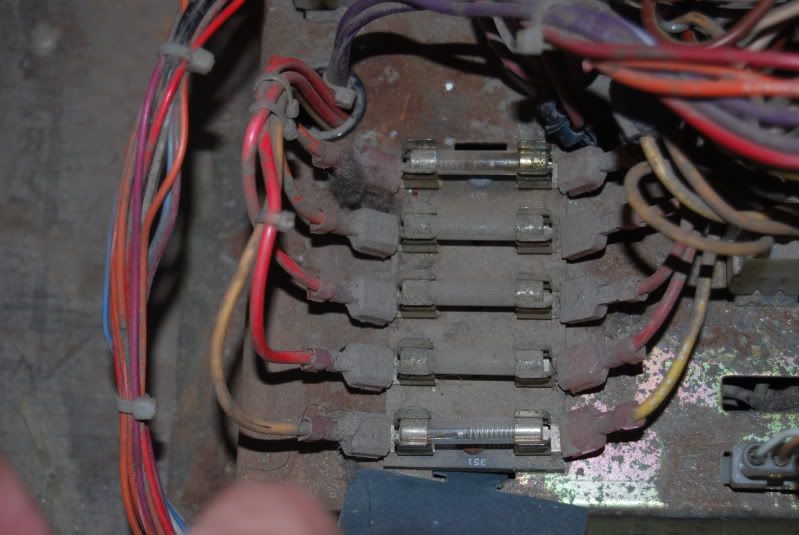

Its filthy but it may help:






Hey Tom... that was REAL NICE of you to go and take a few shots for this new guy... real nice...

Hey Brian... you're a nice guy too! I am sure the new guy is really appreciative of the two of you...

:D

pic

Since we're taking pics of everything can some take a pic of the bolts used to secure the monitor. Even better if you know exactly what they are so I can go buy some. washer's? wingnuts? How many on top below etc.

I have some isc hardware I found in the cabinet. I assume the 2 bolts I found with wingnute go to the controll panel. The manual sdaly don't not list that I can see what the original hardware is supposed to be

HA

You're the one running around posting pic's of you brick!

I guess you just wanted to show your brick was bigger than the first guys brick!!
