OK im restoring a tron and slowly aquiring all the parts i need. i know there are 3 boards for the main PCB setup i just dont know how to identify each. So far i have one. Heres a pic of it. can anybody tell me which one this is and what other 2 i will need? Any pics of the ones i will need? I plan on rebuilding the boards completely and getting all new cables. Anybody with any bad boards let me know ill buy them (not cracked or all rusted Just not working). Thanks!


Attachments

  • tronboard2.jpg
    37.3 KB · Views: 25

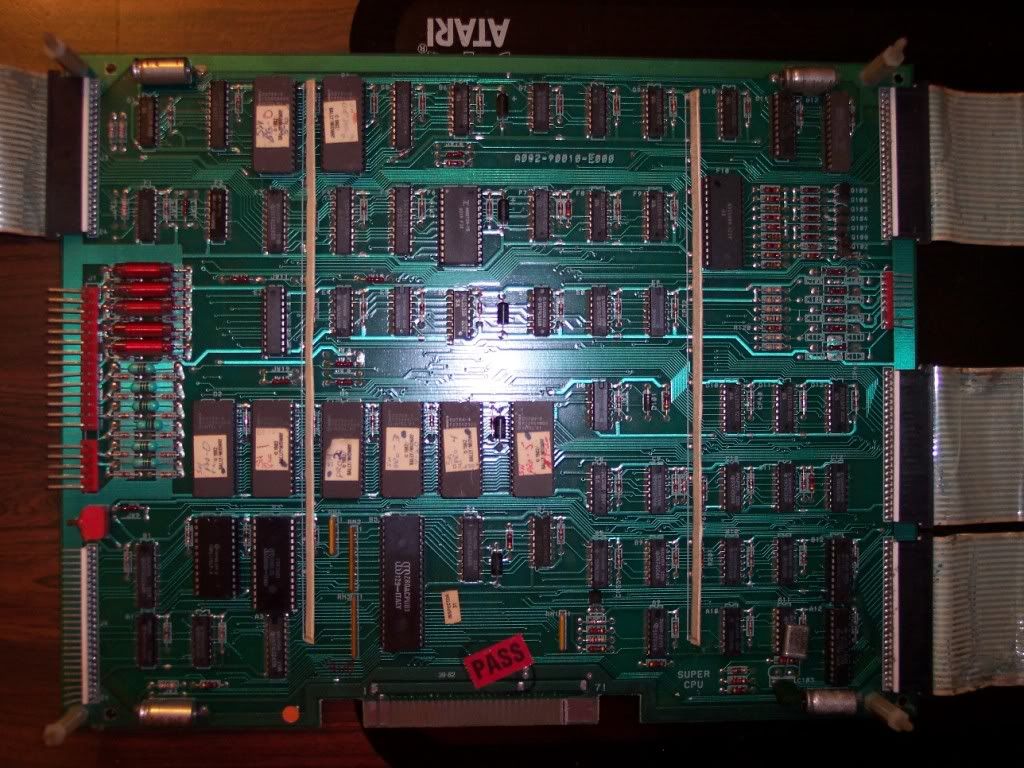

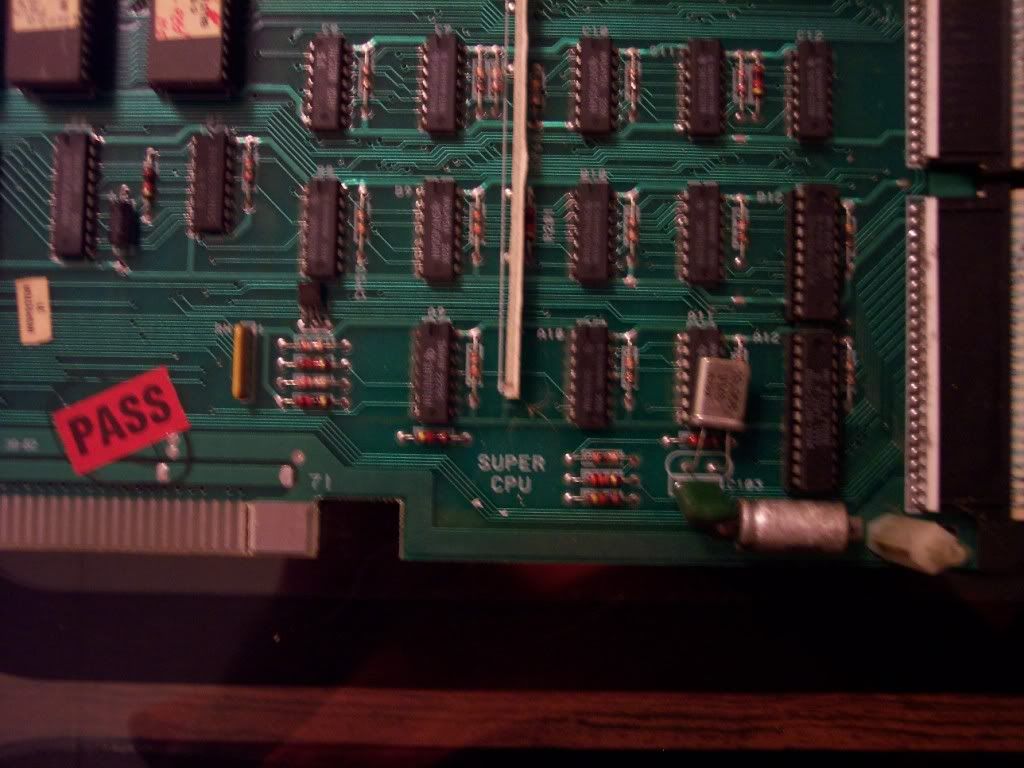

That's the Super CPU board (the middle one when the stack is fully assembled). You'll also need the Super Sound I/O (or SSIO) board and the Video Generator board.

Awesome thanks, how do i identify the different boards? Are there numbers on them or certain pins i should look for?

Awesome thanks, how do i identify the different boards? Are there numbers on them or certain pins i should look for?

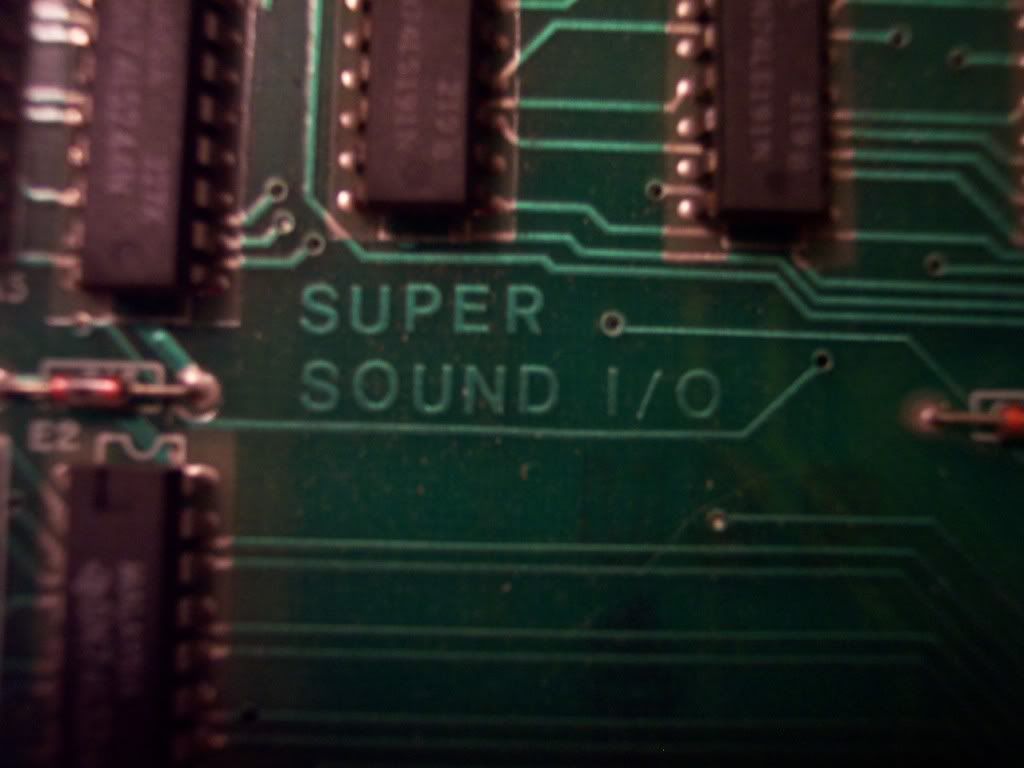

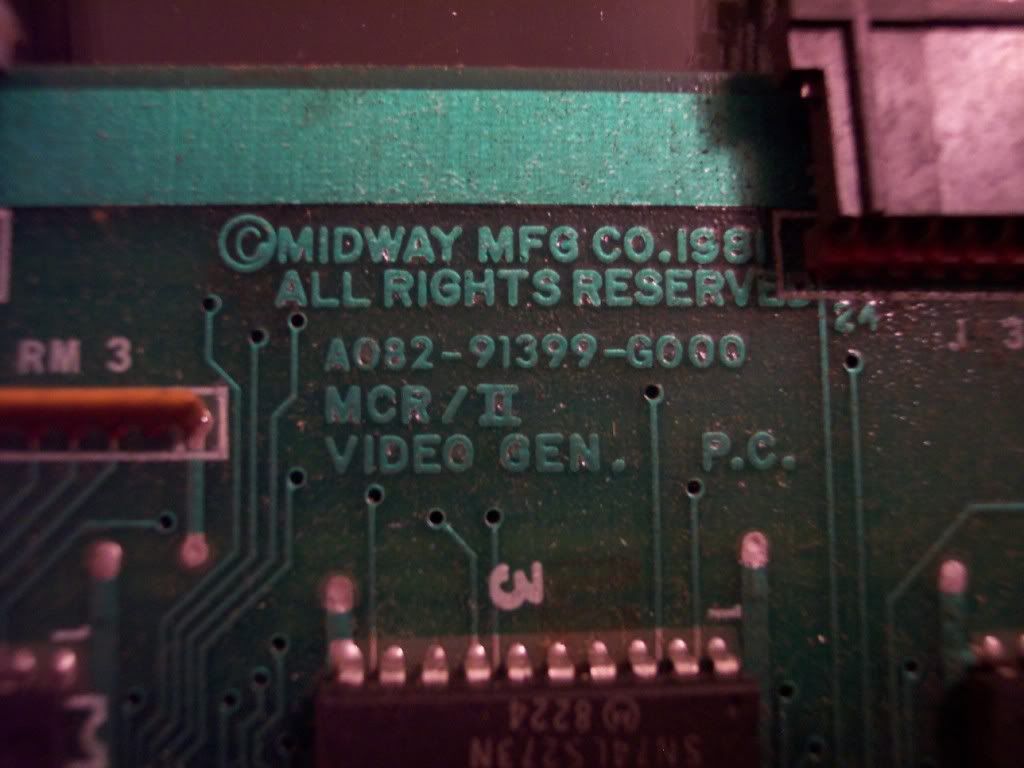

Look for the MCR 2 stamp on the boards. There is an SSIO, SUPER CPU, and VIDEO GEN board in the 3 board stack.

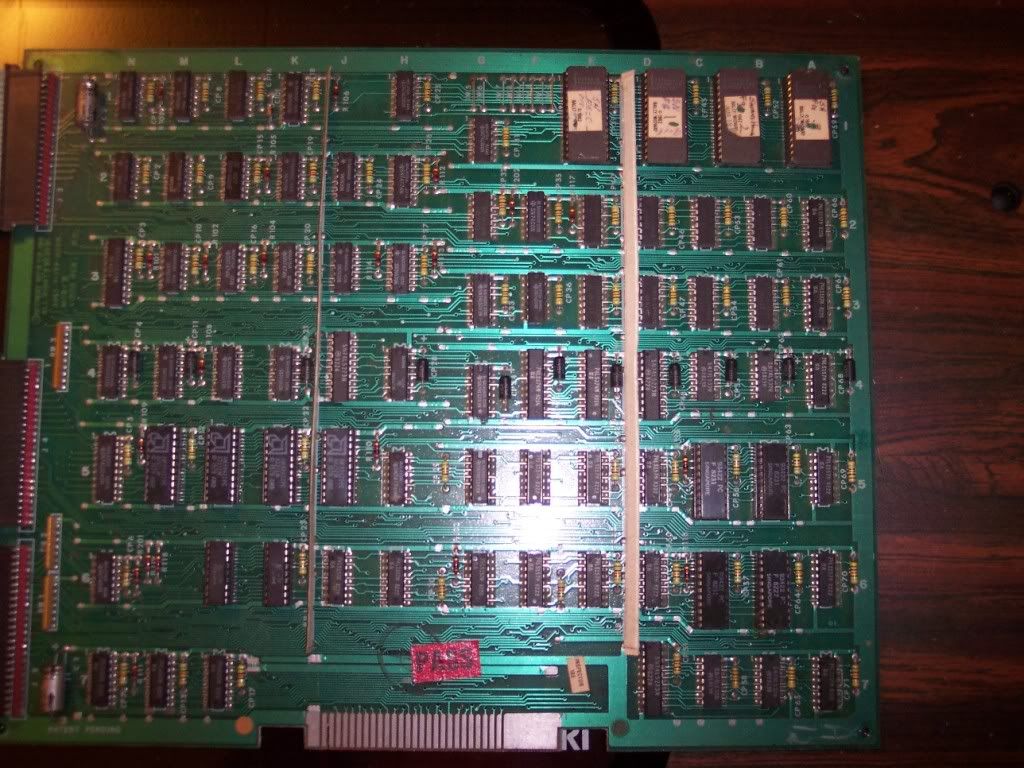

Here you go






With all that being said you will most likely be better off just buying a whole boardset. Piecing stuff together just takes too long and too much money on untested stuff.

You might PM CDJump here -- he did have them for sale earlier and he could ship you a tested and working set.

Very nice thank you all for the help. I do have the Super CPU board just need the other 2. if i can find a whole set for a good price though ill do that. Thanks again.
John
