How do I know what version of G05-805 I have?

taylormadelv

Well-known member
Joined
Dec 7, 2008
Messages
1,839
Reaction score
43
I have been looking around and I have seen two different pinouts in manuals for the p100 12 pin molex going to the G05-802/805 monitor. One version has pin 1 as the Z input, pin 6 as X return and pin 8 as Z return. The other has pin 1 as the X input and pin 6 as Z return and pin 8 as power ground. On top of that, the ZVG cable I am trying to mate this with does not seem to match either and the Asteroids Deluxe cabaret harness appears to be aftermarket and I am not 100% confident in how that is wired either. Sooooo many variables, gives me a headache! Is there something printed on the monitor that will let me know what version I have?
Dokert, can you help? :)

Thanks for the reply. The manuals seem to show two different pinouts for both the G05-805 AND G05-802, the manuals refer to both monitors at the same time. So I am unsure which pinout is correct for the monitor I have right now.

I'm going to assume the blue and white Electrohome label is missing on the frame of the monitor? (sometimes found on the side where the frame mounted transistors are)

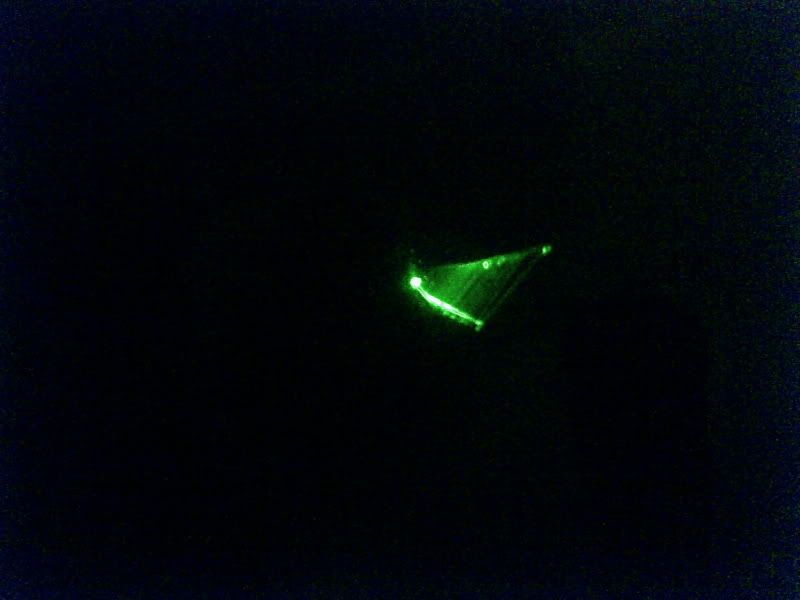

Because the 15 pin power molex from ZVG will not fit the power brick in the BZ mini, I decided to use an Asteroids Deluxe cabaret wiring harness which fit the brick and power pinout to the monitor. Then I hacked in the ZVG output connector to the z, x and y on the 12 pin molex input. The zvg has been tested and is known good. When I run battlezone in vectormame, I get a picture like this:

Does this look like the z and z being reversed? Anyone kinda recognize what a pic like this means?
Thanks!
