Atari Centipede Cocktail Table help

Mcc313

Active member

Donor 2016, 2020
Joined
Feb 12, 2016
Messages
332
Reaction score
40
Location
Flat rock, Michigan

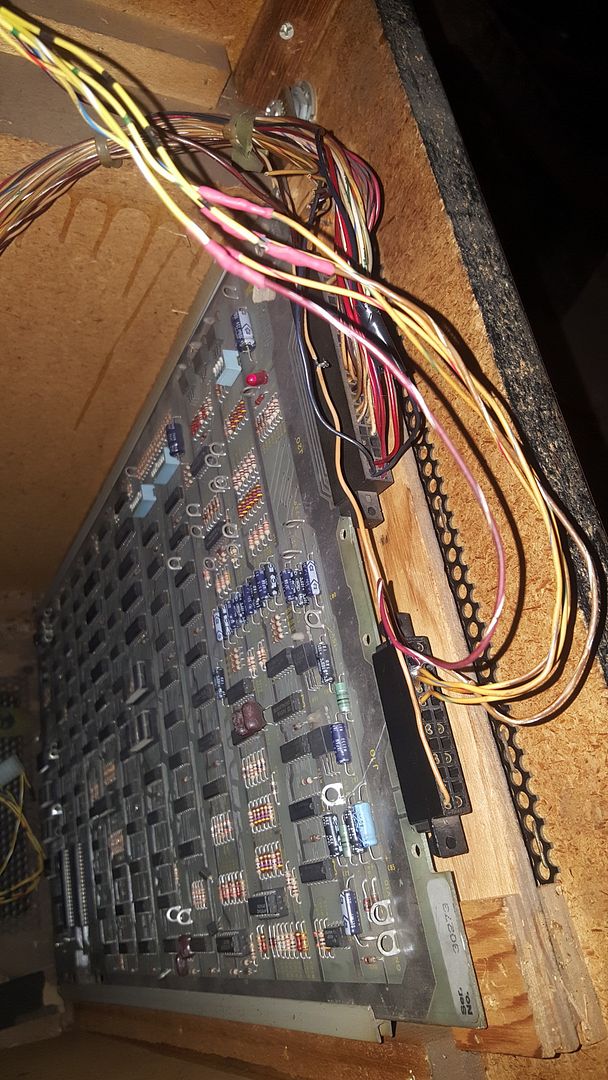

I just picked up a centipede cocktail table. It plays blind. The wire harness is pretty hacked up and i have spent hours and days trying to connect a monitor. I have a 13" cga monitor that im not sure if it works, so i want to connect an lcd to test it out. I have a cga to vga converter. The problem is the harness is so bad i cant make sense of it. Does anyone know the pinout for this. Which is r,g,b,ground,h sync, v sync, or does it use a composite sync? Anyone able to help me make sense of this? Photos attached.



If you google "centipede Pin out" you'll find the pinout there's a few different sites that have them some are missing some signals so you want to look at all the ones to fill in the blanks for example there's a composite sync but I don't think one of the sites show it the other doed

Hit up Ken, Wldfire here of Golden Age Arcade parts. He has a Centipede unhacked cocktail harness that I gave him so he could replicate.

I typically refer to Mike's site ->

https://www.mikesarcade.com/cgi-bin/spies.cgi?action=url&type=pinout&page=Centipede.html

And for the wire colors, I use ... wait for it ... yes ... can you guess ... THE SCHEMATICS!! :)

http://www.arcade-museum.com/pinouts-game/7299.html

Wiring List for P19:

| A | 1 | Audio 2 Out
| B | 2 | Audio 1 Out
| C | 3 |
| D | 4 | P1 Joystick Up
P1 Joystick Left | E | 5 | P1 Joystick Right
P1 Joystick Down | F | 6 | P2 Joystick Left
P2 Joystick Up | H | 7 | P2 Joystick Right
P2 Joystick Down | J | 8 | Video Green
Video Red | K | 9 | Video Blue
Video Return | L | 10| Video Vert. Sync.
Video Horiz. Sync | M | 11|
| N | 12| Video Composite Sync.

Last edited:
I re pinned the harness using the schematic. I am using the RGBS connector on the cga to vga converter. I have the comp sync connected and still no picture. I have tried combos of h sync and v sync along with the composite sync. Do i need video return connected also? Ive tried the RGBHV connector also with no luck
