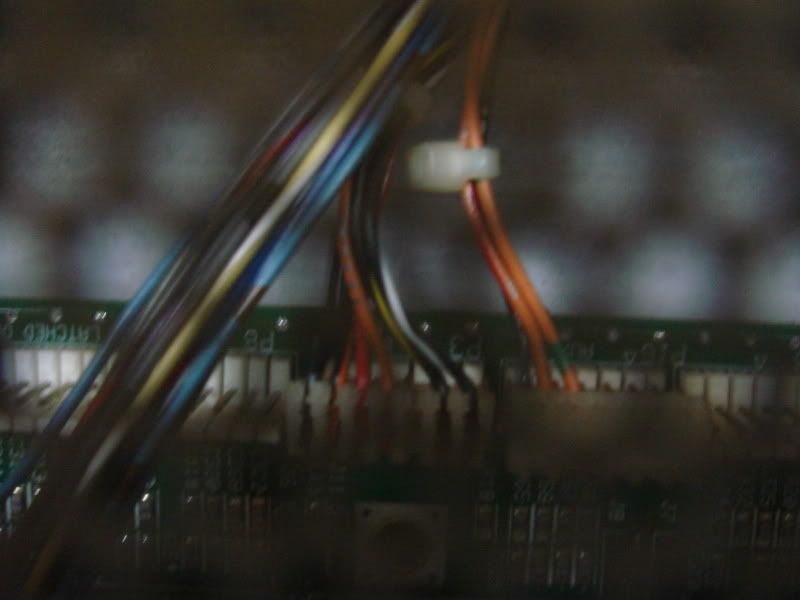

I just took a pic of it for you with my phone. I won't be able to upload it until later...I could text it to you if you are in a rush for it

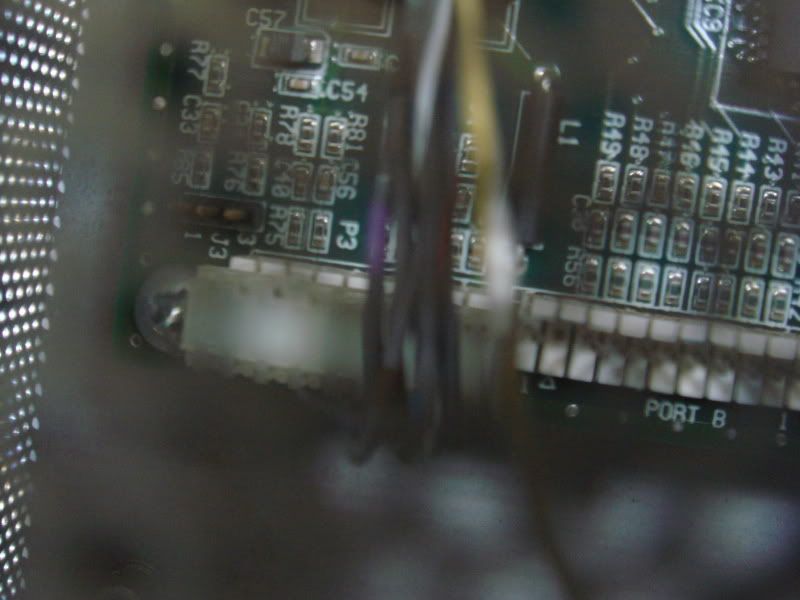

Test and Service Credit buttons are off the JAMMA harness. the Volume Up/Down buttons come off another header. I think it might actually be labeled "Coin Door", or "Aux. Inputs", I forget what it's called on the Seattle boards.

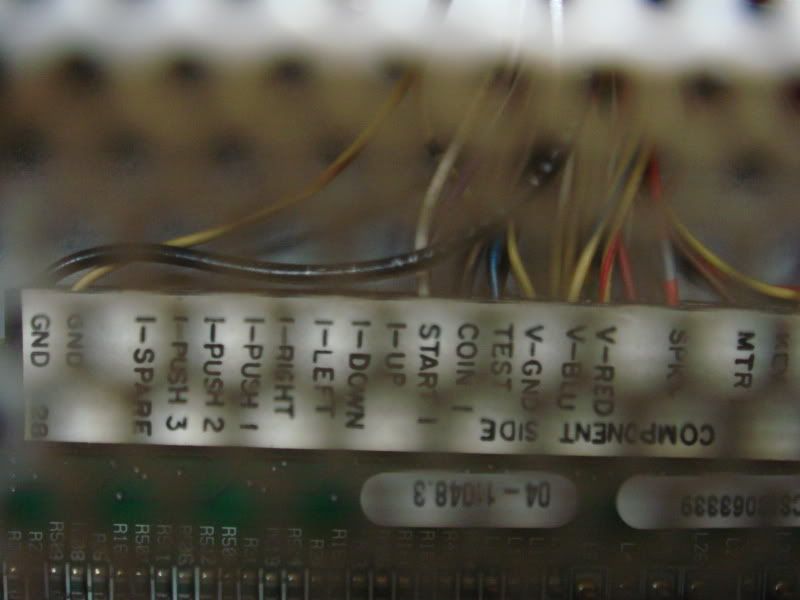

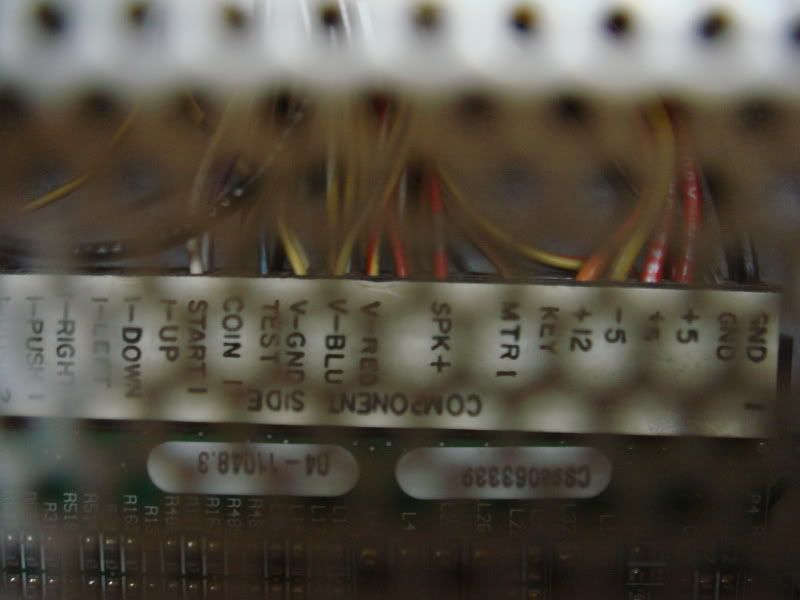

The test and volume switch board should have a 6 pin connector...here is where they all go:

1. Jamma Harness 15 parts side
2. P-16 AUX pin 5
3. P16 AUX pin 6
4 Jamma Harness N (14) solder side
5. KEY
6. P16 AUX pin 7

Hopefully this helps...if you still need pics of it, please let know

Thanks

Doc

that should work, I have the carnevil kit and the service and test wires where cut off. so insead of wiring them up with the volume buttons, ill just use the service and test buttons in the cabinet.

i got a whole wiring harness with service/test pcb/connector.

lmk if you need it..

make sure to use momentary contact switches if you use your own stuff.

This is the best i can do for now.Hope it helps?
