ALGOL CR-M-19VH Info for those that may need it.

tta583

Active member

Donor 2011, 2013
Joined
Jun 10, 2006
Messages
2,328
Reaction score
18
Location
Kentucky
I happen to have a couple of these monitors. One loose and the other in a generic cab running a bootleg double layer blue DK. Jr. board. Each missing stickers but enough between the two that I was able to gather some info and get over the hump to figure out what they were. Here is what I worked out, all gathered together, in the event anyone else goes searching and finds it helpful.

Also known as Ati CR-M-19VH
One of mine has a sticker that says Handewell Corp. of Los Altos Ca.

Info with pics of the chassis:
http://forums.arcade-museum.com/showthread.php?t=75289

Pin out is a little different:
Starting from the back of the monitor, closest pin as you look past the neck is Red.
RED GROUND GREEN GROUND BLUE GROUND SYNC

Testing my board on a 4600 I discovered it was Negative Sync so I would say the Sync pin on the CR-M-19VH expects negative sync.

The tube is a 510SLB22. It sets up just like a "typical" arcade monitor (IE G07, 4600, 4900, etc...) on my Sencore. So that is the standard 23 adapter an a B&K.

Couple of other short threads on the monitor:
http://forums.arcade-museum.com/showthread.php?t=117284
http://forum.arcadecontrols.com/index.php?topic=73141.0

Last edited:

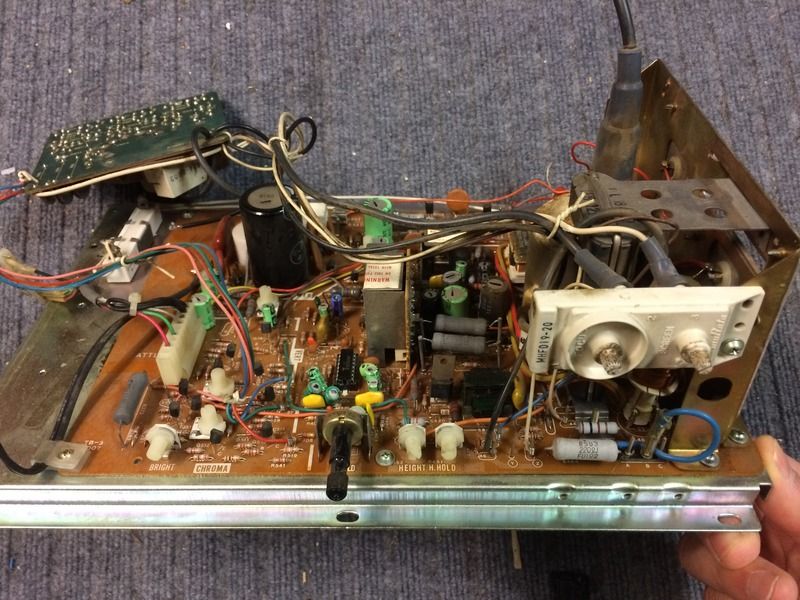

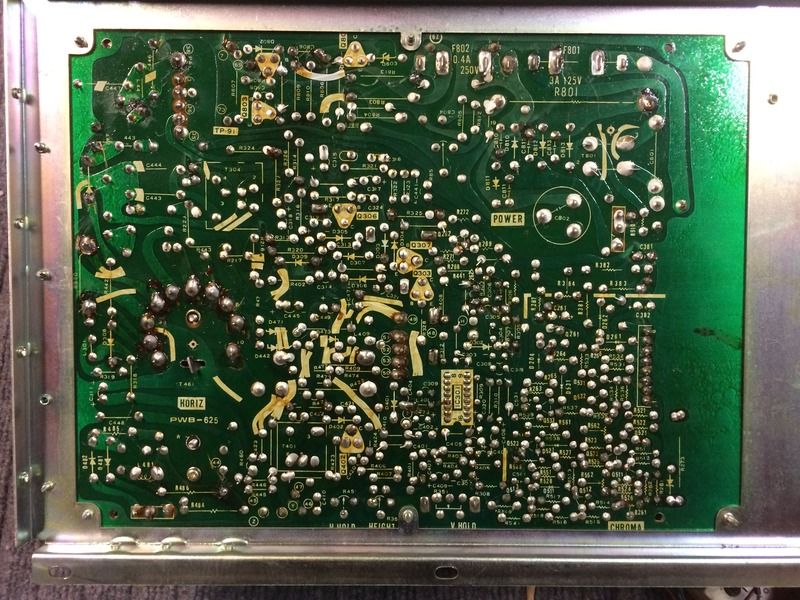

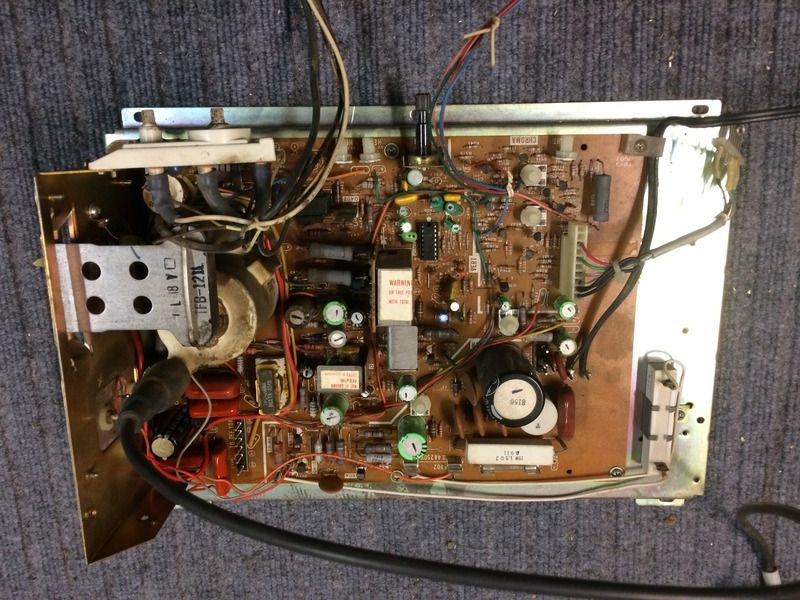

Chassis pics linked from the first thread noted above:




Need to fix the power supply first

or check to see if it works.

Tp91 is the test point for the regulator

whats the voltage at the tp91??

is there high or low ohms there??

check each transistor in the 800 block.

check the zener diode in the 800 block.

remove the h.o.t while you are testing the power supply.

leave it out until you have the power supply working.

confirm no shorts around the regulator insulator.

again which resisotrs are getting hot?
