8-liner pot o gold ?

Pinout.

does anyone know were to fine the pinouts for the 8 liner pot o gold board cant find it anywere and i want to build my poker machine, Ron

Does that board have the large finger board connector and the small fingerboard connector for the harness. Or does it have the large fingerboard and the small 6 pin molex instead of the small fingerboard?

Well, I think power and video would be the same. Buttons may be different as some games had different button layouts...

Pinout

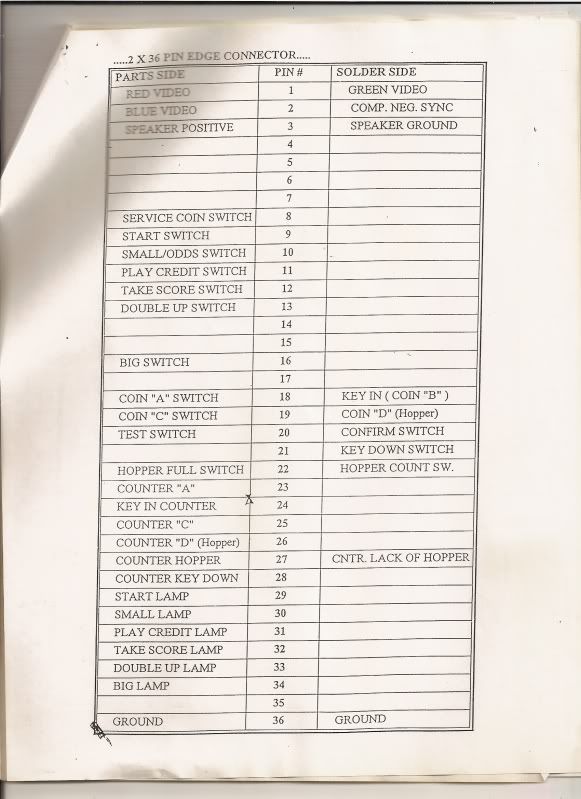

Here is a scan from my manual. It only shows the large one though. The next page for the power connector is missing. If you still need info. I can dig around tomorrow and find one most likely. Also. I have a complete, unhacked harness with the button sockets, video input and test panel for $25 shipped.
