6100 Tempest Question

skramarck

Member
Joined
Jun 9, 2010
Messages
92
Reaction score
1
Location
Newark, Delaware
Hi all,

I am in the midst of a Tempest project and as part of that project, I've replaced the transistors at Q102,Q103,Q605,Q606,Q705 and Q706. I've put brand new transistors and brand new sockets and I 'THOUGHT' I had matched the wiring, but now fear that I messed this part up.

Can someone let me know how the three colored wires should appear on each base? Three are Yellow,Red, Green and three are Blue,Purple, White. Is it possible that I have gummed up the wiring order of any/all of these?


thanks for any advice...this is my first vector, so please be gentle!

All of the red green yellow are 2n3716
Blue black white are 2n3792

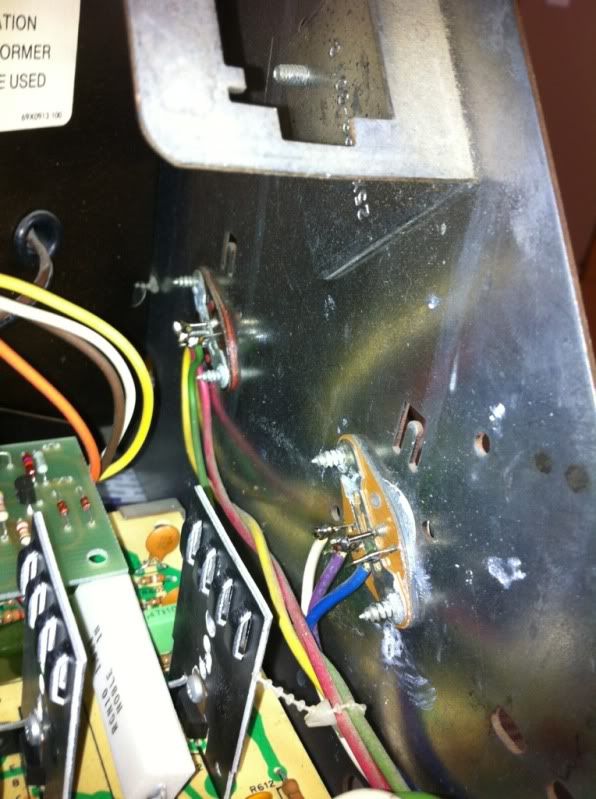

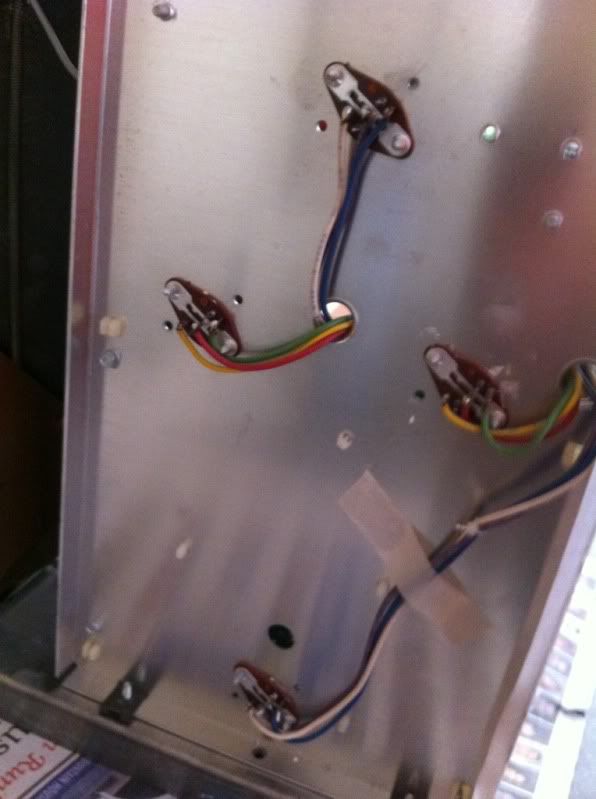

Heres a pic





Andrew

Last edited:
I use the reminder trick, If it's blue, it ends in 2. That way I know I have the correct transistor with the correct wiring. That trick is copywrited by the way, but you are welcome to use it free of charge.
